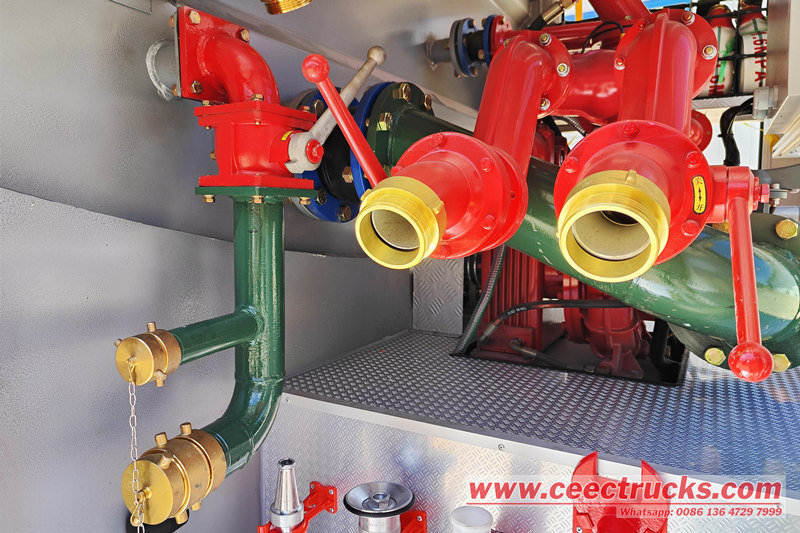

Bomba de incêndio tipo CB10 60 Vazão 60L

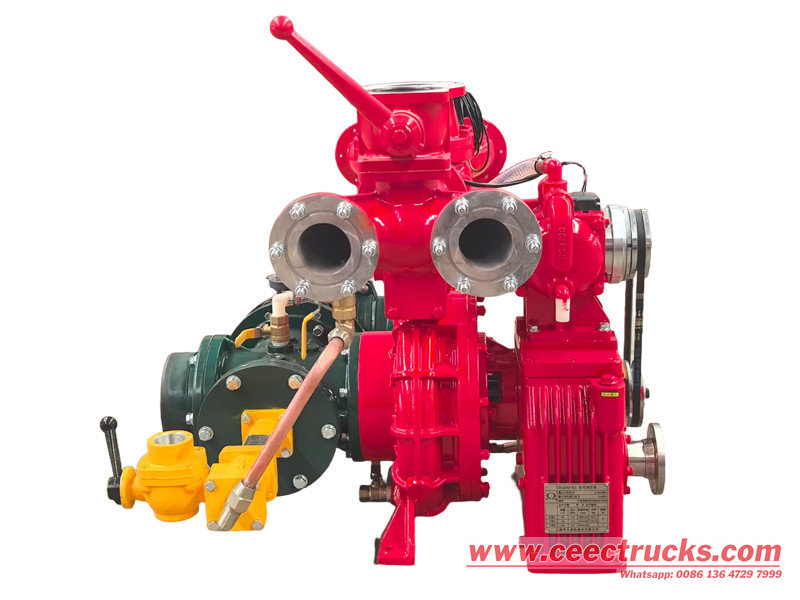

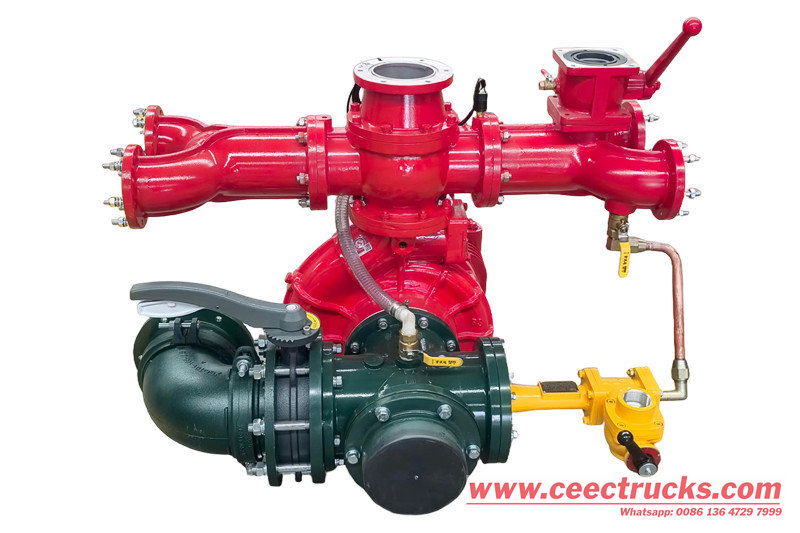

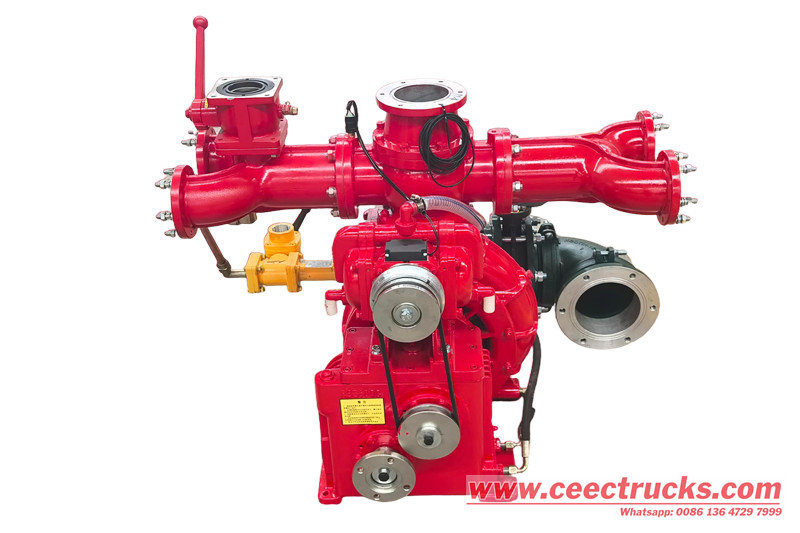

O CB10 60 Fire Pump Type is a high-performance, atmospheric pressure fire pump featuring a high-strength aluminum alloy pump body and copper impeller, resulting in a compact and lightweight design.

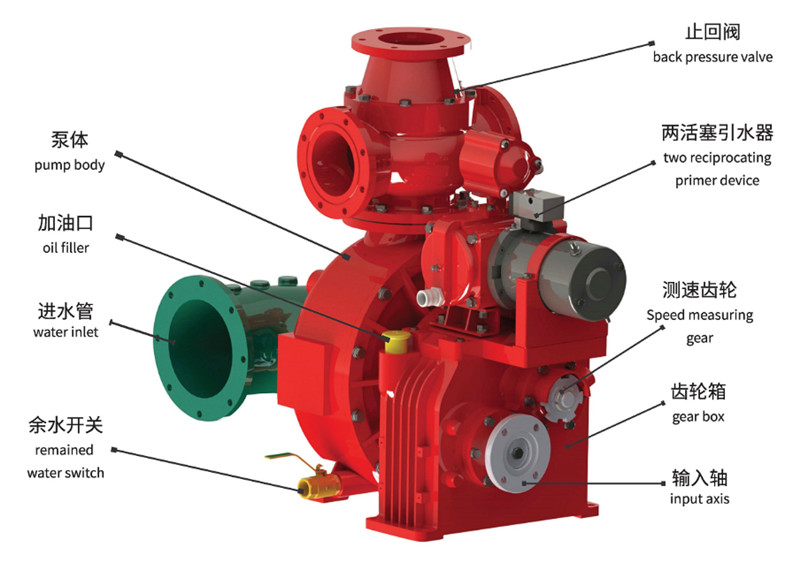

It employs a single-stage guide vane structure, ensuring uniform, stable, and reliable water output. It utilizes an electric two-piston priming device, enabling short priming time and convenient operation. Its rated flow rate reaches 60 L/s, and its rated pressure is 1.0 MPa.

». Reliable structure and strong adaptability

The CB10 60 fire pump boasts a large rated flow rate and high rated pressure, enabling it to continuously output a stable water flow during firefighting operations, meeting the needs of long-distance, high-lift water supply.

Its rational hydraulic design ensures high efficiency, maintaining good working condition even under high load conditions, providing a reliable water source for firefighting and rescue.

». Strong and stable performance

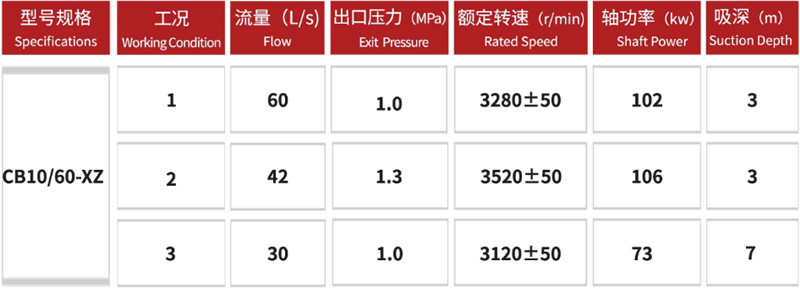

With a rated flow rate of 60L/s and a rated pressure ≥1.0MPa, it can quickly output high-pressure water flow, has strong adaptability to a wide range of operating conditions, and can meet the high-intensity rescue needs such as long-distance water supply and high-rise building fire fighting.

Equipped with a piston priming device, it has a suction lift of 3m and does not require a pre-priming pump. It starts up quickly, while also having excellent sealing performance, corrosion resistance, and leak prevention. Routine inspection and maintenance are convenient, and maintenance costs are low.

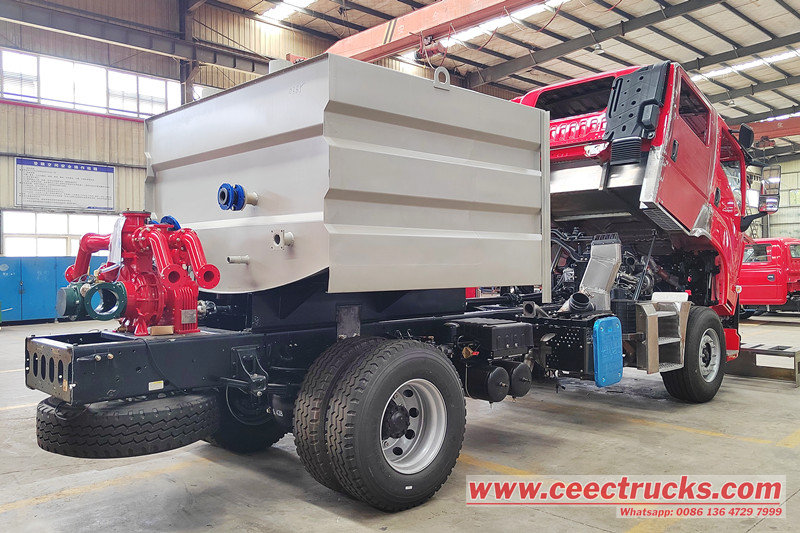

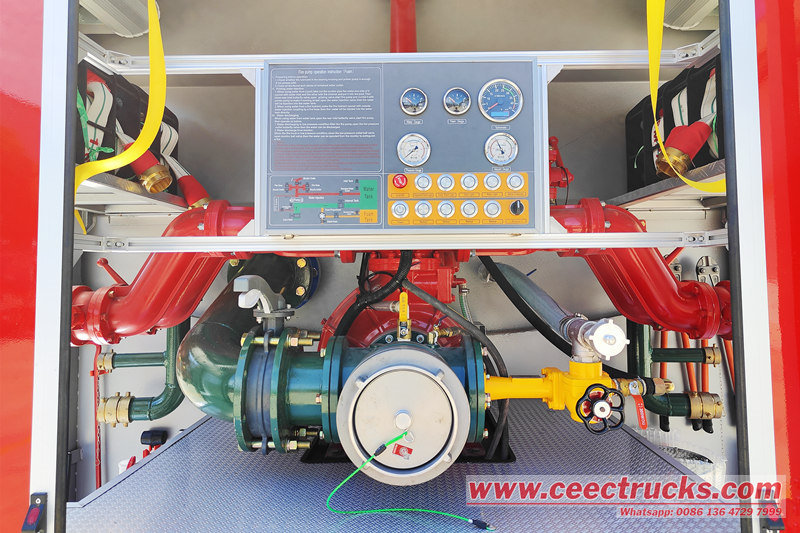

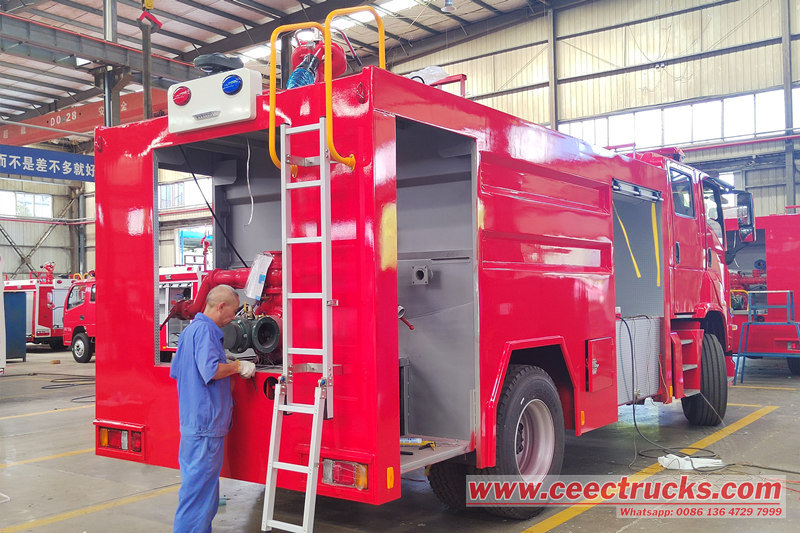

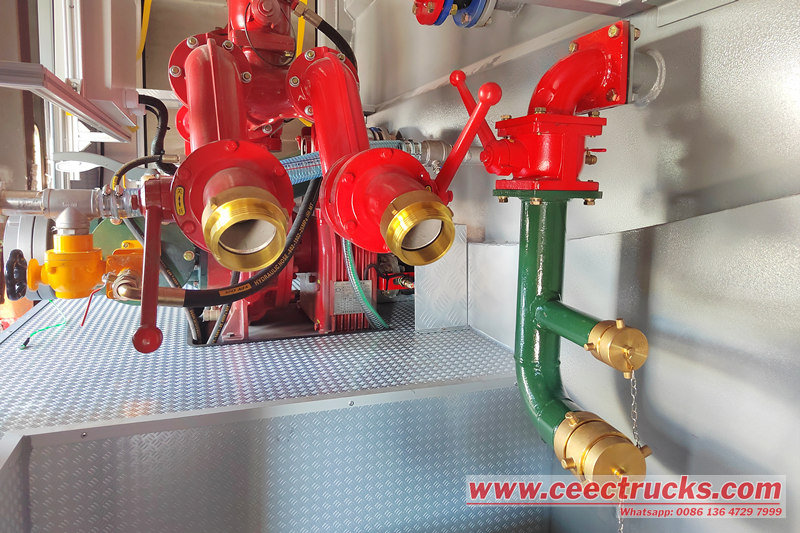

The CB10 60L fire pump (flow rate 60L) has a wide range of applications, suitable for urban fire trucks, industrial park fire fighting, warehousing and logistics, and emergency rescue. It can be used for building fire fighting, long-distance water supply, high-rise water supply, and water transfer operations, providing a stable and reliable water source for firefighting and rescue under various complex conditions.

». Product advantages and features

● High performance: Rated flow rate 60L/s, pressure ≥1.0MPa, capable of rapidly outputting high-pressure water flow to meet high-intensity firefighting needs;

● Lightweight structure: Utilizes an aluminum alloy pump body and copper impeller, small in size and light in weight, suitable for mobile scenarios such as fire trucks;

● Wide adaptability: Compatible with various water sources, widely used in various firefighting scenarios such as high-rise buildings and large warehouses.
