Beiben 4142 offroad 8x8 Lube Service Truck Drawing and Design

Beiben 8x8 offroad Lube and Diesel Combo truck is designed and produced for multiple purpose, which designed with multiple tanker assembly and matched with hose reel for different purpose. Including fuel tank, gear oil tank, engine oil tank, grease pod tank, waste oil tank, coolant tank, windshield washer fluid tank, etc. All matched with 15m horse reel and refueling gun, designed as an ideal service truck for all requirement. Below are customized Beiben 4142 lube service truck.

Truck Model	Beiben 8x8 Lube Trucks
Engine	WP12.420E32, 420HP / 11596cc
Transmission	FAST 12 shift, 12F and 2R
Fuel Tanker	10000L~20000L
Gear Oil	500L~1000L
Engine Oil	500L~2000L
Grease Pod	500L~1500L
Waste Oil	500L~2000L
Coolant	500L~1000L
Windshield Fluid	200L

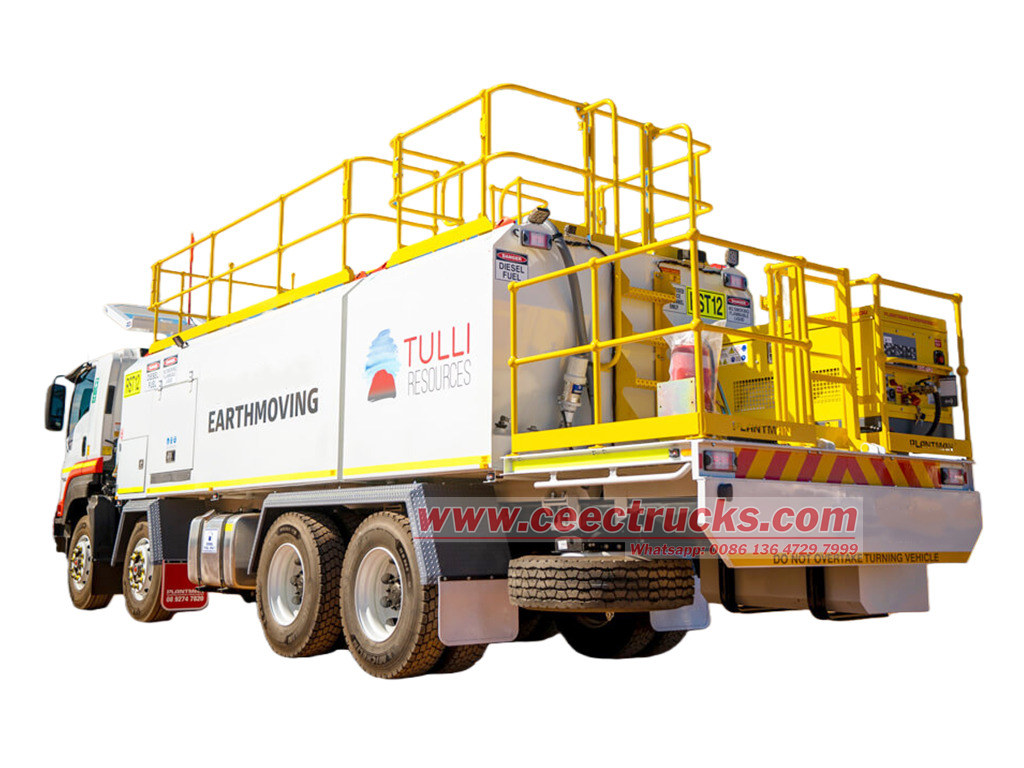

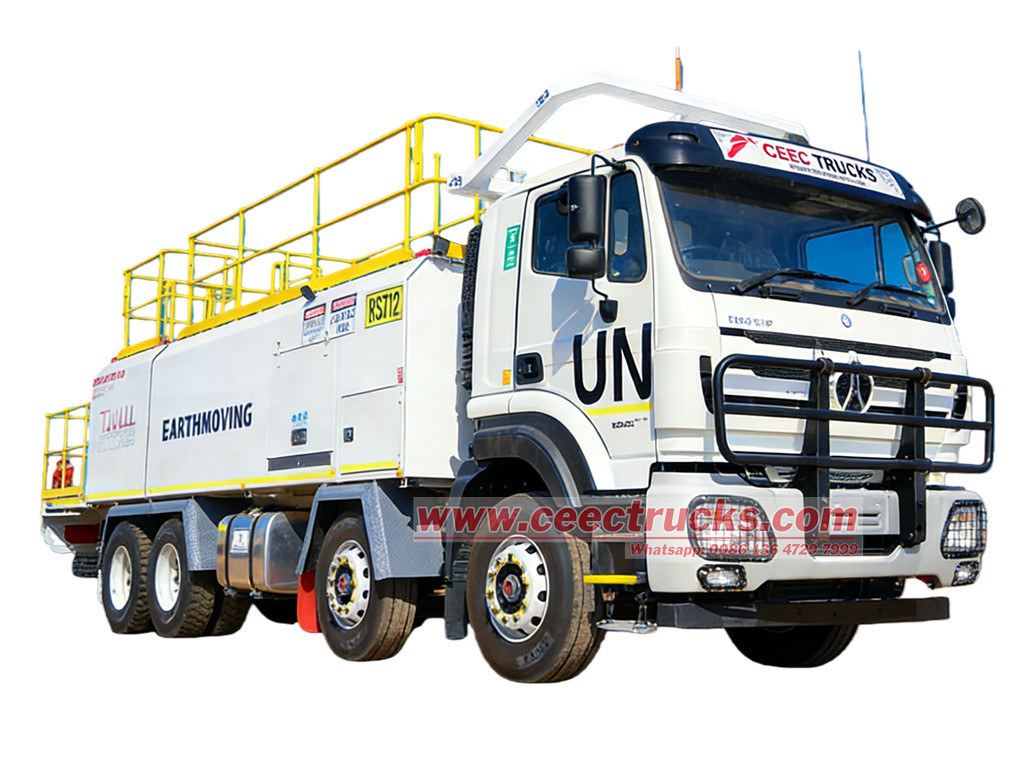

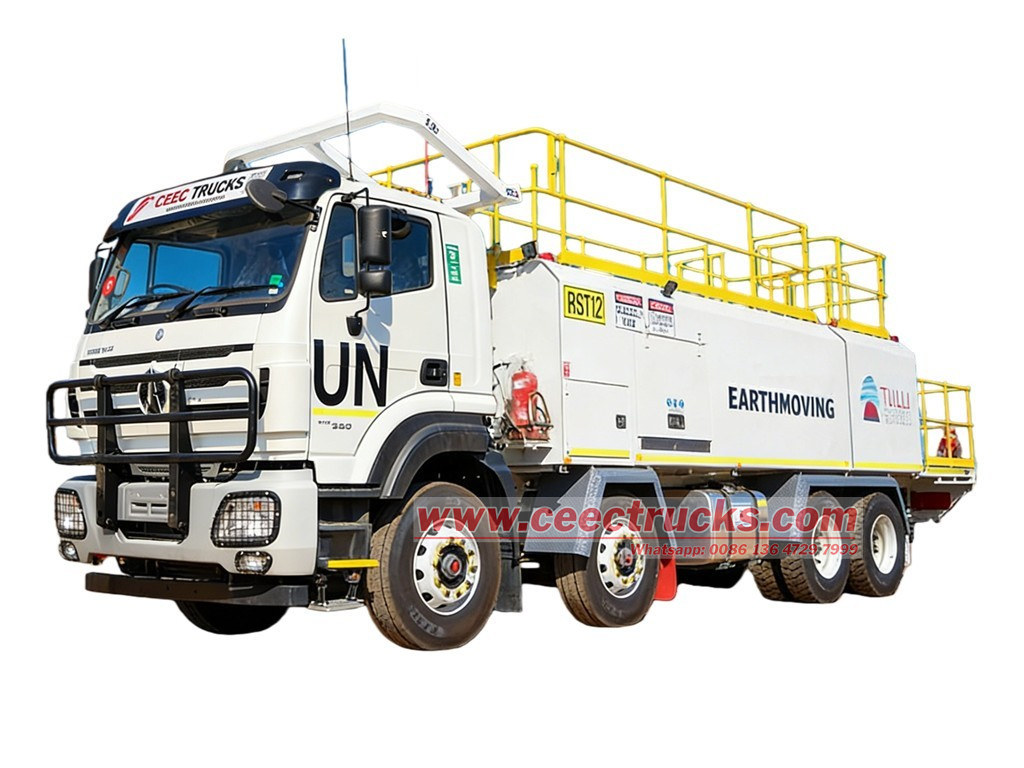

Beiben 4142 offroad 8x8 lube service tanker truck	Beiben 8x8 combined lube refueling truck

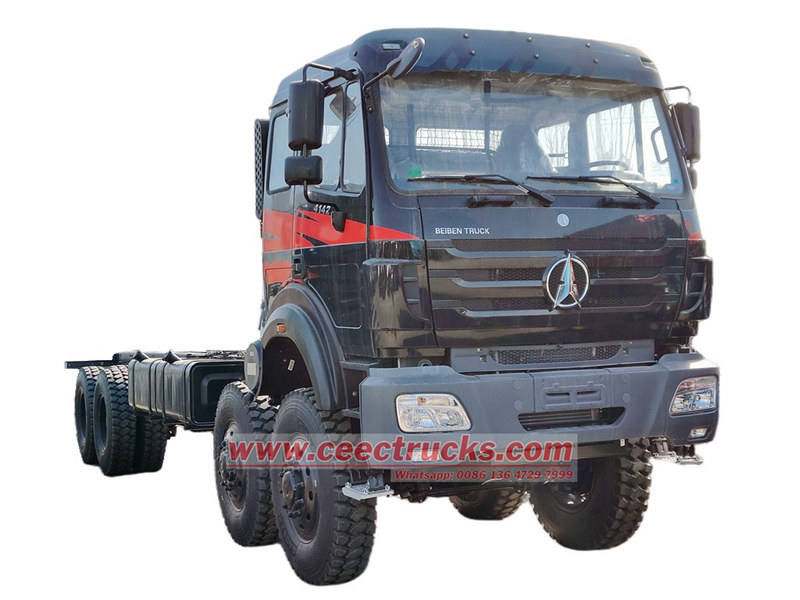

Beiben 8x8 AWD 4142 cargo truck chassis

China North Benz 4142 model cargo truck, LHD and RHD optional for different countries, equipped with Merdeces Benz NG80B long cabin, AC and air suspension seat. Equipped with 420HP diesel engine and FAST 12 shift manual gearbox, higher power output and lower fuel consumption. Customized 14.00R20 tires very suitable for wildland driving.

Model	Beiben 4142 offroad cargo truck
Driving	8x8 all wheel drive
Engine	WP12.420E32 diesel engine 420HP
Tranmission	FAST 12JS200T
Cabin	NG80B long cabin with sleeper
Wheelbase	1500+5050+1450mm
Tire	14.00R20, 12.00R24
Fuel Tanker	400L + 400L
Ground Clearance	339mm
Painting	As request white, blace, blue, yellow, etc

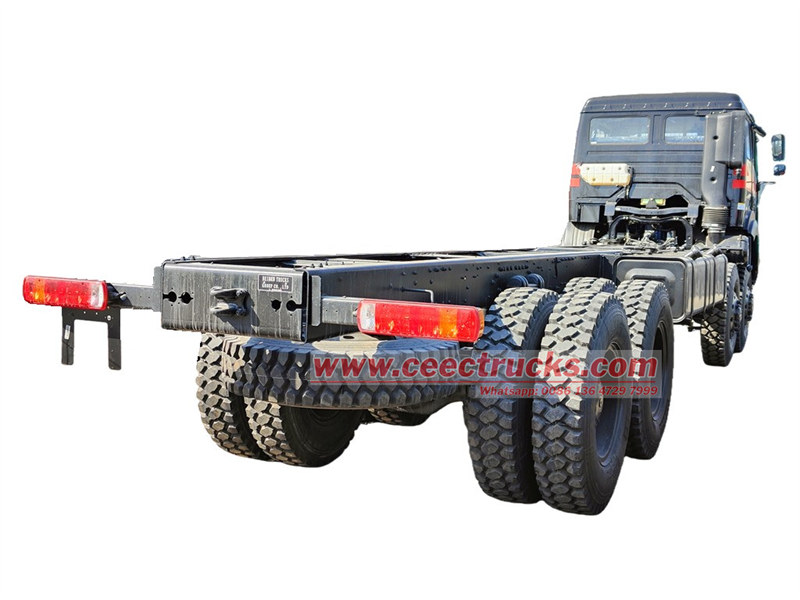

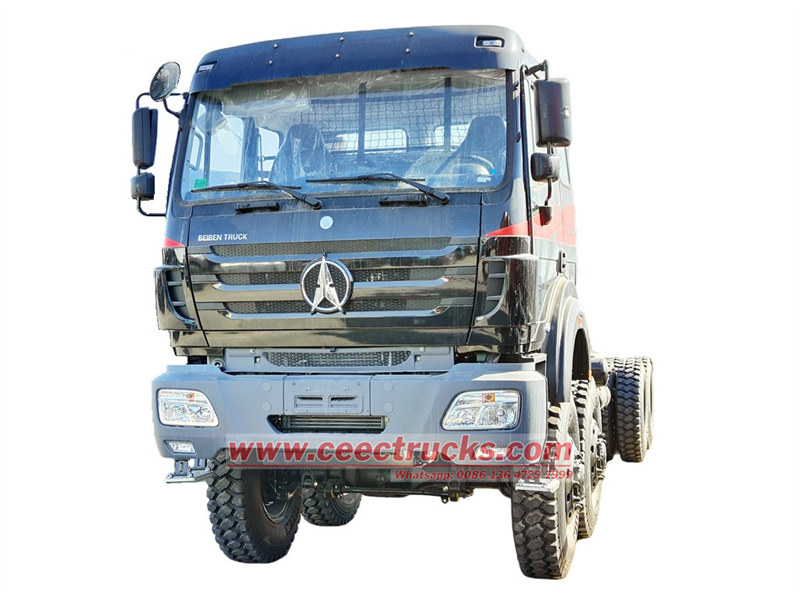

Beiben 8x8 truck chassis	Beiben 4142 cargo truck chassis

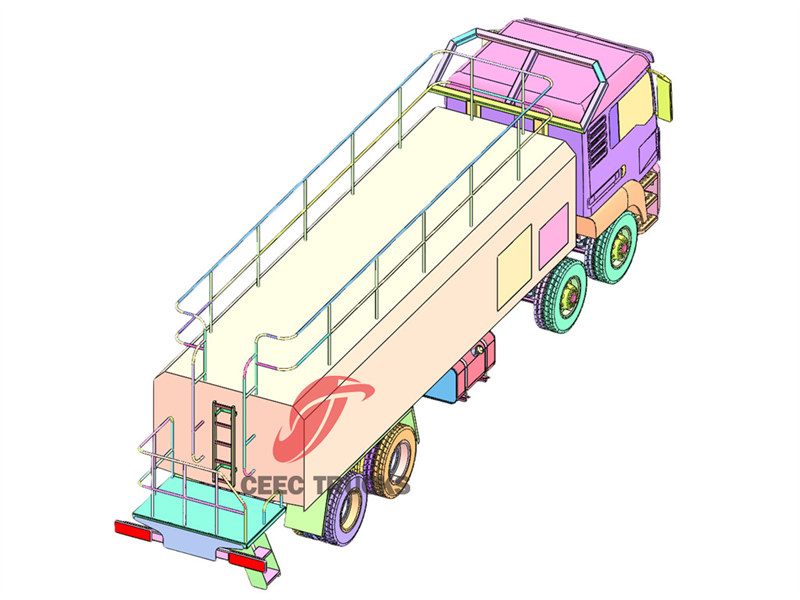

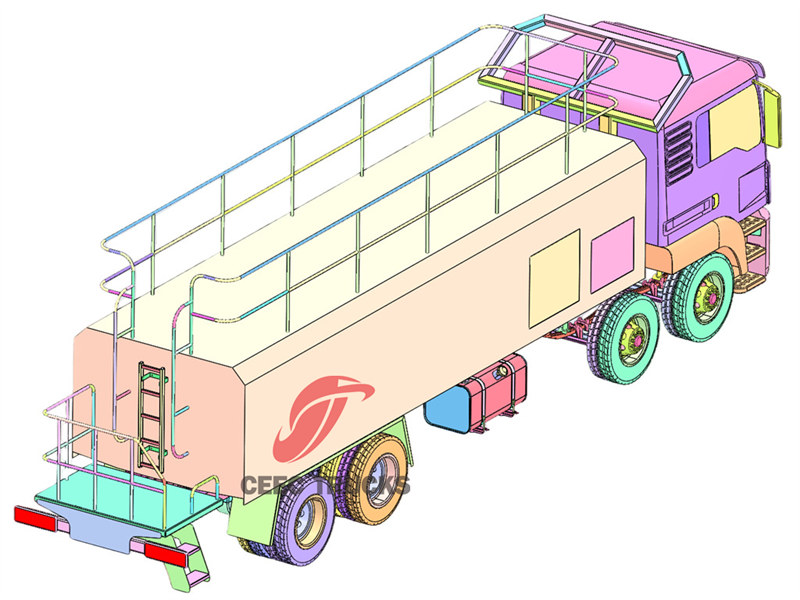

Design of Beiben 8x8 offroad Lube and Diesel Combo Service Truck

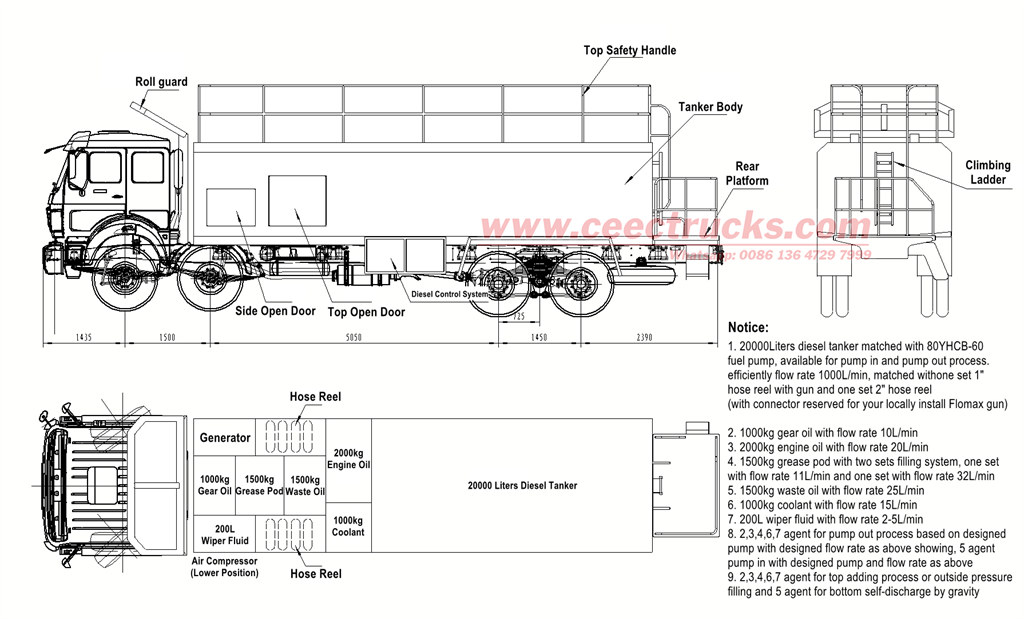

Beiben 4142 heavy duty 8x8 offroad truck mounted combined lube and diesel refueling system, this type service truck equipped with wildland type 14.00R20 tire, specialized for mining project trucks and equipment service. CEEC TRUCKS Engineer Department prepare official drawing for clients checking, then design the upper body kit based on clients requirement, both technical drawing and 3D drawing can be prepared for checking and confirm.

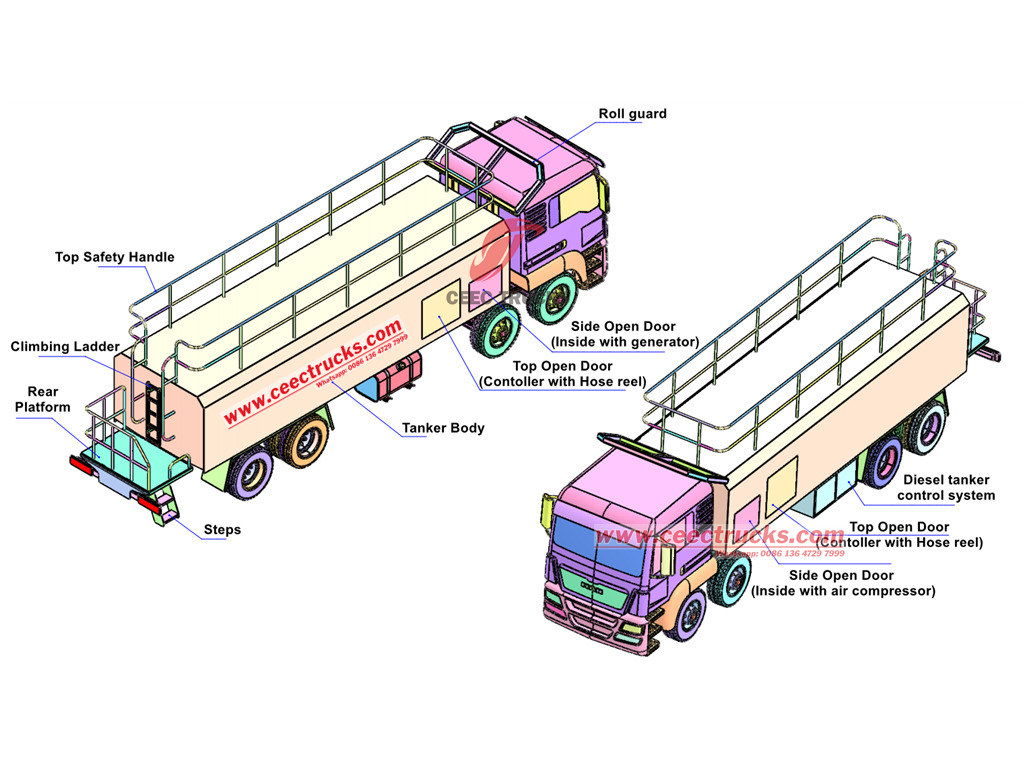

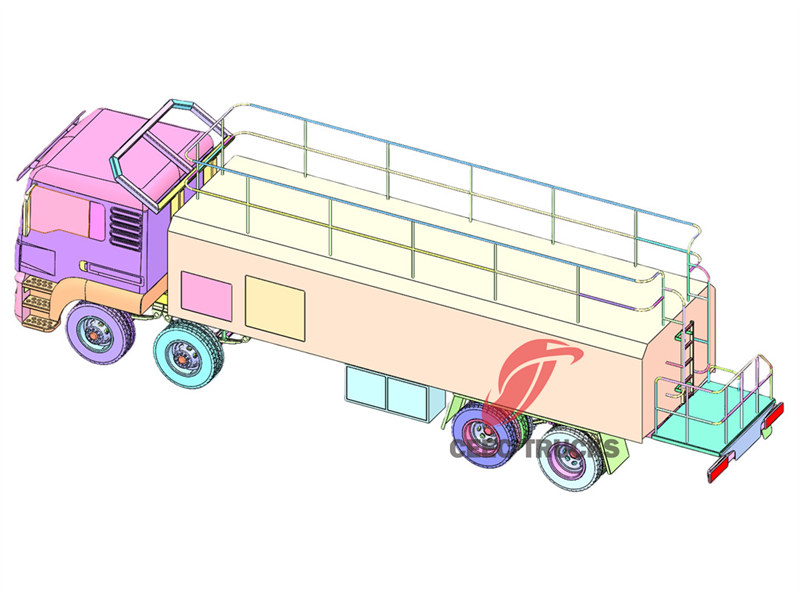

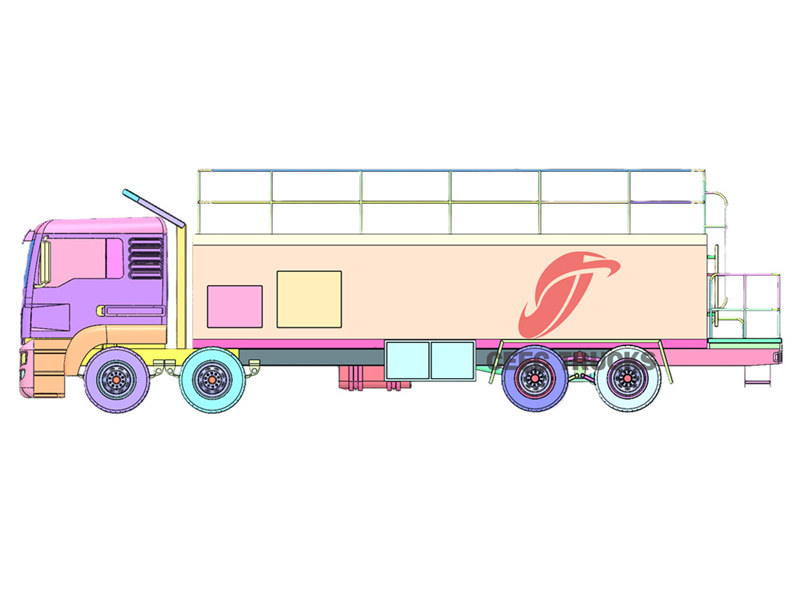

3D drawing for Lube Trucks



Available in wide range of sizes to suit any job, including 4x4 lube service truck, 6x6 lube truck, 8x8 service truck, etc. CEEC TRUCKS Lube Trucks are designed for quick on-site maintenance. The customized trucks can help reduce downtime and guarantee clients machines efficiently working all the time. Engineered with flexibility in mind, these service trucks provide efficient mobile servicing wherever and whenever needed.
